Standard Motors
  |
Established in 1995, Shriram Coatings is a reputed manufacturer of a wide range of high-quality motors up to 132L Frame (9.3 kW). The range includes various types of motors such as Standard Induction, Dual Speed, Crane Hoist Duty and Special Purpose Motors to name only a few. The range has been proving its worth for different applications. Shriram Coating Motor is the preferred choice of major corporate, OEMs due to the product quality, performance, timely deliveries and competitive prices.
|
 |
Motor Description
|
||||||||||||
|
Motor Description
|
||||||||||||
 |
Motor Description
|
||||||||||||
 |
Motor Description
|
||||||||||||
 |
Motor Description
|
||||||||||||
 |
Motor Description
|
||||||||||||
 |
Motor Description
|
| SINGLE PHASE | THREE PHASE | |
| FRAME | 63 TO 112 M | 63 TO 132 L |
| OUTPUT (KW) | 0.18 TO 2.2 | 0.18 TO 7.5 |
| HP | 0.25 TO 3.0 | 0.25 TO 10.0 |
| MOUNTING | B3, B5, B14 | B3, B5, B14 |
| IP | 22 - SHEET METAL BODY 55 - CAST IRON BODY |
55 |
| RPM | 960 TO 3000 | 960 TO 3000 |
| DUTY | S1 | S1 |
| Insulation | F Class | F Class |
| Voltage | 225 V/180 V | 415 V/380 V |
| Frequency | 50 HZ | 50 HZ |
APPLICATIONS
Machine tools, Textiles, Air conditioning, Diary equipments, Material handling equipment, Material handling equipment, Pollution control equipment, Packaging machinery, Cooling towers and Civil construction machinery, Cement industries, Paper & Steel.
APPLICATION STANDARDS
| ID | STANDARDS | TYPE |
| 1 | IS 325-1996 | Three phase induction motor specification |
| 2 | IS 12615-2004 | Energy efficient induction motors– Three phase squirrel cage |
| 3 | IS 4691-1985 | Classification of degrees of Protection |
| 4 | IS 6362-1971 | Methods of cooling |
| 5 | IS 2253-1974 | Symbols of construction and mounting arrangement |
| 6. | IS 4728-1975 | Terminal marking and direction of rotation |
| 7. | IS 12065-1987 | Permissible limits of noise levels for rotating electrical machines |
| 8. | IS 1231-1974 IS 2223-1983 |
Dimensions and output for electric machines Foot mounted motors Flange mounted motors |
| 9. | IS 12075-1987 | Mechanical vibration of rotating electrical machines |
Bearing designation as per Frame Size on DE side ODE side
| FRAME SIZE | DE BEARING | ODE BEARING |
| 63 | 6202 ZZ | 6202 ZZ |
| 71 | 6203 ZZ | 6203 ZZ |
| 80 F | 6204 ZZ | 6204 ZZ |
| 90 S | 6205 ZZ | 6205 ZZ |
| 90 L | 6205 ZZ | 6205 ZZ |
| 100 L | 6206 ZZ | 6205 ZZ |
| 112 M | 6306 ZZ | 6206 ZZ |
| 132 S | 6308 ZZ | 6208 ZZ |
| 132 L | 6308 ZZ | 6208 ZZ |
 |
|
|

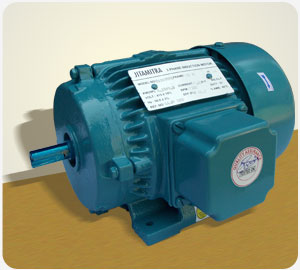

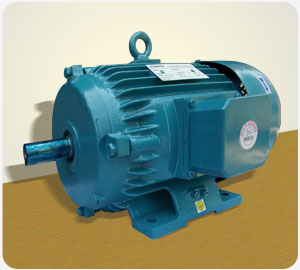

3 Phase Foot (B3) Mounted Induction Motor |

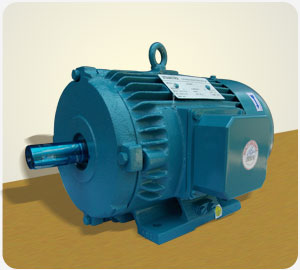

3 Phase Flange (B5) Mounted Induction Motor |

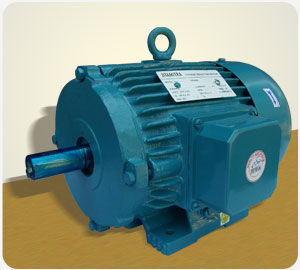

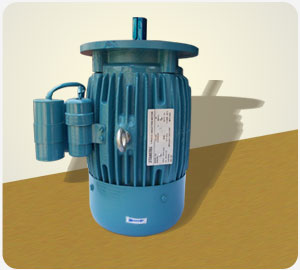

3 Phase Face (B14) Mounted Induction Motor |
|
|
|

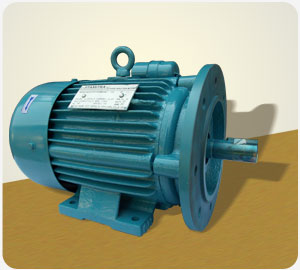

3 Phase Squirrel Cage Foot Cum Flange Mounted Induction Motor |
